IronMan Junior 6" Seamless Rollformer

KWM IM6 JR.pdf

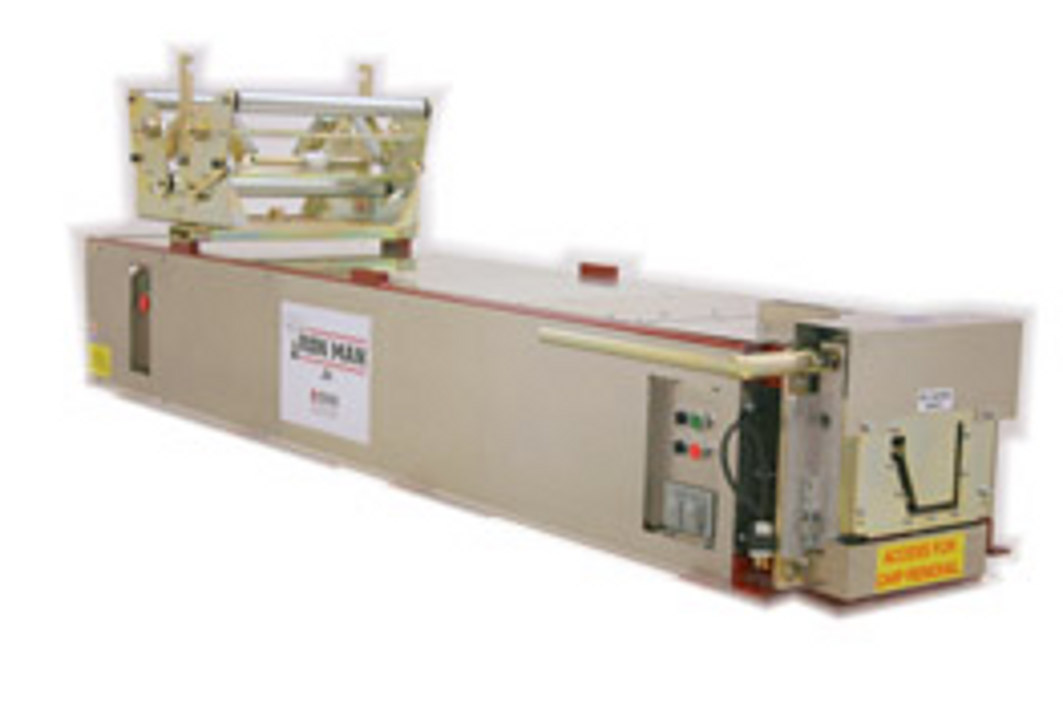

IRONMAN JUNIOR 6" SEAMLESS ROLLFORMER

Polyurethane Drive Train

• Eliminates the need to load coil prior to transportation (less material waste)
• Eliminates slippage from cold weather and condensation

.002 Hard Chrome Plated Steel Forming Rollers

• Rollforms all recommended materials with minimal or no adjustment
• Free-floating forming rollers produce less pressure and allow for more product uniformity

Electrical and Control System

• Push button entry and exit end controls with safety wiring and "jog" feature
• 3/4 HP, 110 volt, single phase motor, 13.6 ampere

Structural Steel Frame

• Welded tubular frame

Modular Turnstile Upright System & Transfer Bars

• Transfer bars (ease of coil loading)

Specifications:

Power:    3/4 HP, 110 volt, single phase, 13.6 ampere, totally enclosed fan cooled (T.E.F.C.) motor
Dimensions:    Length - 107.5" ( cm), Height - 48" (122.0 cm), Width - 24" (61.0 cm)
Weight:    Approximately 960 lbs. (435.4 kg)
Drive:    Powered polyurethane drive rollers via chains and sprockets
Shear:    Front pull guillotine
Speed:    Approximately 35 feet per minute
Controls:    Push button entry and exit end controls with "jog" feature

Recommended Materials:

• Maximum width 15"
• Aluminum - .032 Maximum Gauge
• Copper - 16 oz. 3/4 hard Maximum Gauge

Options:

• Machine mount cradles
• Additional runout support stands
• CE Certified wiring
• Additional turnstiles
• Additional spools
• 12 volt, DC power
• Trailer riser pad
